Fenwal 27121 Detect-A-Fire | West Coast Plastics

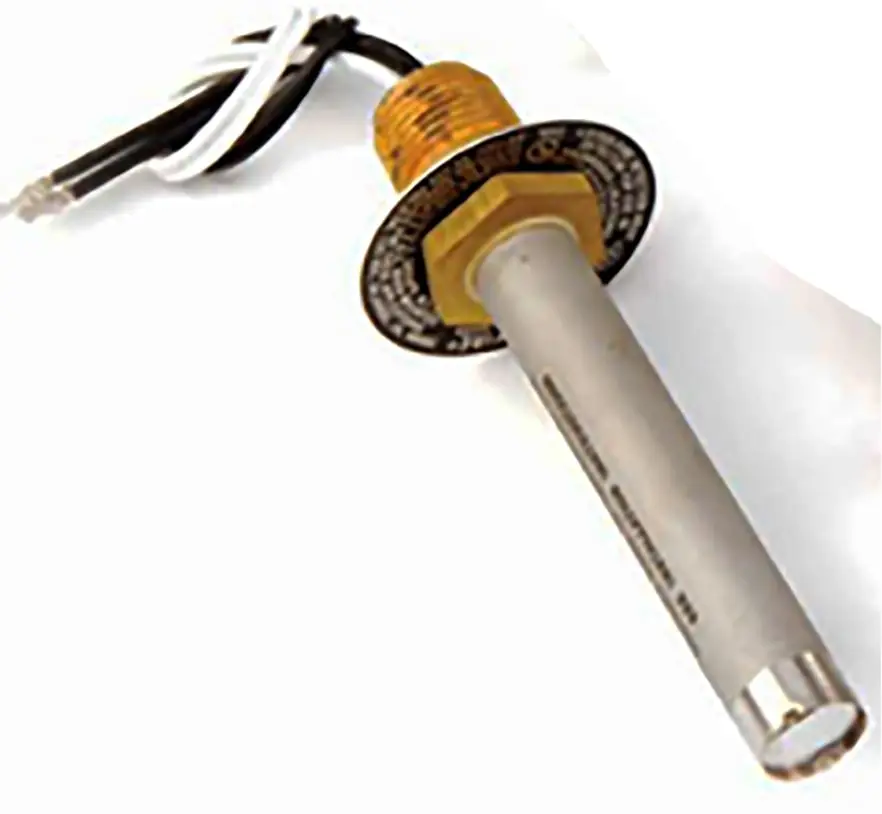

Name: Fenwal 27121 Detect-A-Fire
SKU: 5280
Availability: InStock

$264.00 – $381.00

The Fenwal Detect-A-Fire Fire Detectors are the “heart” of many fire protection systems. These highly reliable devices have been a standard of the industry for over 45 years. Many thousands of these units are now in use controlling the release of extinguishants such as clean agents, CO2, water, or dry chemicals. In some systems the Detect-A-Fire is used as a fire alarm device, to sense overheat or fire and alert personnel. In other systems it is used as a release device, to sense fire and actuate fire attack systems.

Download Fenwal-Detect-A-Fire Datasheet

LEAD TIME 2-12 WEEKS, FOB: CARSON, CA.

Part No.

Temp. Setting

Clear

SKU: N/A Categories: Detect-A-Fire, Fenwal

All Variations

Part No.	Temp. Setting	Description	Price	Quantity
12-E27121-000-140	140ºF	Detect-A-Fire	$264.00	Fenwal 27121 Detect-A-Fire quantity
12-E27121-000-160	160ºF	Detect-A-Fire	$264.00	Fenwal 27121 Detect-A-Fire quantity
12-E27121-000-190	190ºF	Detect-A-Fire	$264.00	Fenwal 27121 Detect-A-Fire quantity
12-E27121-000-210	210ºF	Detect-A-Fire	$264.00	Fenwal 27121 Detect-A-Fire quantity
12-E27121-000-225	225ºF	Detect-A-Fire	$264.00	Fenwal 27121 Detect-A-Fire quantity
12-F27121-000-275	275ºF	Detect-A-Fire	$275.00	Fenwal 27121 Detect-A-Fire quantity
12-F27121-000-325	325ºF	Detect-A-Fire	$275.00	Fenwal 27121 Detect-A-Fire quantity
12-F27121-000-360	360ºF	Detect-A-Fire	$275.00	Fenwal 27121 Detect-A-Fire quantity
12-G27121-000-450	450ºF	Detect-A-Fire	$293.00	Fenwal 27121 Detect-A-Fire quantity
12-G27121-000-500	500ºF	Detect-A-Fire	$293.00	Fenwal 27121 Detect-A-Fire quantity
12-H27121-000-600	600ºF	Detect-A-Fire	$295.00	Fenwal 27121 Detect-A-Fire quantity
12-H27121-000-725	725ºF	Detect-A-Fire	$295.00	Fenwal 27121 Detect-A-Fire quantity
12-E27121-020-140	140ºF	Detect-A-Fire	$334.00	Fenwal 27121 Detect-A-Fire quantity
12-E27121-020-160	160ºF	Detect-A-Fire	$334.00	Fenwal 27121 Detect-A-Fire quantity
12-E27121-020-190	190ºF	Detect-A-Fire	$334.00	Fenwal 27121 Detect-A-Fire quantity
12-E27121-020-210	210ºF	Detect-A-Fire	$334.00	Fenwal 27121 Detect-A-Fire quantity
12-E27121-020-225	225ºF	Detect-A-Fire	$334.00	Fenwal 27121 Detect-A-Fire quantity
12-F27121-020-275	275ºF	Detect-A-Fire	$344.00	Fenwal 27121 Detect-A-Fire quantity
12-F27121-020-325	325ºF	Detect-A-Fire	$344.00	Fenwal 27121 Detect-A-Fire quantity
12-F27121-020-360	360ºF	Detect-A-Fire	$344.00	Fenwal 27121 Detect-A-Fire quantity
12-G27121-020-450	450ºF	Detect-A-Fire	$362.00	Fenwal 27121 Detect-A-Fire quantity
12-G27121-020-500	500ºF	Detect-A-Fire	$362.00	Fenwal 27121 Detect-A-Fire quantity
12-H27121-020-600	600ºF	Detect-A-Fire	$381.00	Fenwal 27121 Detect-A-Fire quantity
12-H27121-020-725	725ºF	Detect-A-Fire	$381.00	Fenwal 27121 Detect-A-Fire quantity

Description
Additional information

The Fenwal Detect-A-Fire has met with wide acceptance because it is designed with “rate compensation.” Rate compensation provides a unique advantage over both fixed temperature and rate-of-rise types of detectors because only the Detect-A-Fire unit accurately senses the surrounding air temperature regardless of the fire growth rate. At precisely the predetermined danger point, the system is activated.

The secret of the unit’s sensitivity is in the design. The outer shell is made of a rapidly expanding alloy which closely follows changes in surrounding air temperature. The inner struts are made of a lower expanding alloy. Designed to resist thermal energy absorption and sealed inside the shell, the struts follow temperature changes more slowly. A slow rate fire will heat the shell and struts together. At the “set point,” the unit will trigger. A transient rush of warm air up to 40F/min. may expand the shell, but not enough to trigger the unit, virtually eliminating false alarms. If a fast rate fire starts, the shell will expand rapidly. The struts will close and the unit will trigger. The faster the fire rate of growth, the sooner the Detect-A-Fire will react.

Fenwal Detect-A-Fire units are not position sensitive. Horizontal and vertical detectors refer to the most common mounting configuration for that unit. Each type can be mounted either horizontally or vertically depending on the application and installation requirements.

FEATURES:

Repeatable – resets itself, nothing to replace, testable
Rugged – withstands shock and vibration
Versatile – offers various factory set temperature settings
Durable – long lasting stainless steel shell
Economical – wide spacing, reduces installation costs
Internal contact area is hermetically sealed in stainless steel
Color coded to show temperature rating

SPECIFICATIONS 27121:

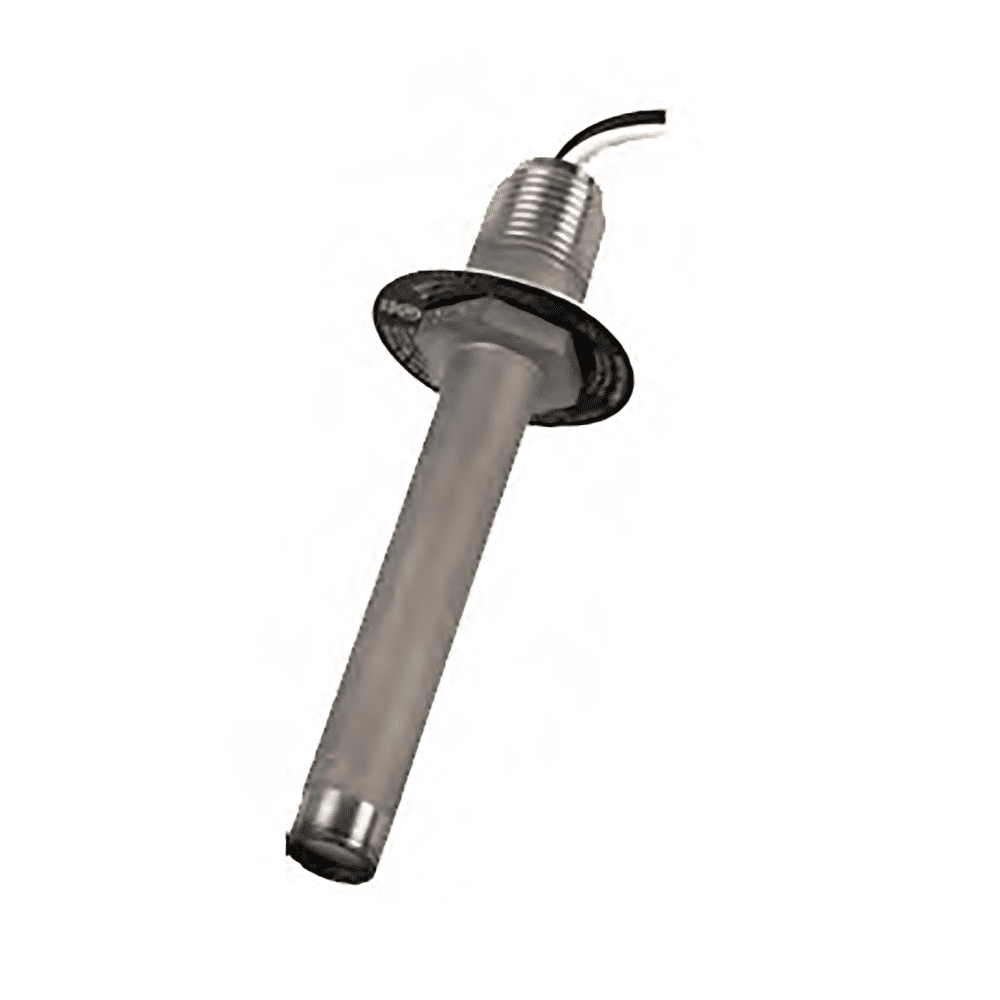

Mounting Configuration: Vertical Hex Head
Construction 27121-000: Stainless Steel Shell, Brass Head
Construction 27121-020: All Type 300 Stainless Steel
Contact Action on Temperature Rise: Closes

12-E27121-000-140 | 12-E27121-000-160 | 12-E27121-000-190 | 12-E27121-000-210 | 12-E27121-000-225 | 12-F27121-000-275 | 12-F27121-000-325 | 12-F27121-000-360 | 12-G27121-000-450 | 12-G27121-000-500 | 12-H27121-000-600 | 12-H27121-000-725 | 12-E27121-020-140 | 12-E27121-020-160 | 12-E27121-020-190 | 12-E27121-020-210 | 12-E27121-020-225 | 12-F27121-020-275 | 12-F27121-020-325 | 12-F27121-020-360 | 12-G27121-020-450 | 12-G27121-020-500 | 12-H27121-020-600 | 12-H27121-020-725 | 27121-0 | 27121-2

Weight	N/A
