Using the principle of differential expansion of metals, a temperature increase causes the stainless steel outer case to expand at a greater rate than the internal bridge assembly. Because the case is in direct contact with the heated surface, a temperature change is sensed almost instantaneously. With an increase in temperature the case expands resulting in a linear change of the internal bridge assembly causing the electrical contacts to open. This turns off the heaters. A decrease in temperature closes the contacts, restoring power to the heaters and turning them on again.
FEATURES:
- Fully adjustable
- Overlapping Ranges from 50 to 600ºF
- 1200 Watt Resistive Load Rating at 120/240VAC
- Current Rating: 10 amps @120VAC, 5 amps @240VAC
- Contact Action on Temperature Rise: Opens
- Narrow Temperature Differential
- Minimum contact rating of 100,000 cycles
- Stainless Steel Case & Cover
- Compact Size
- UL Component Recognized
- CSA Certified

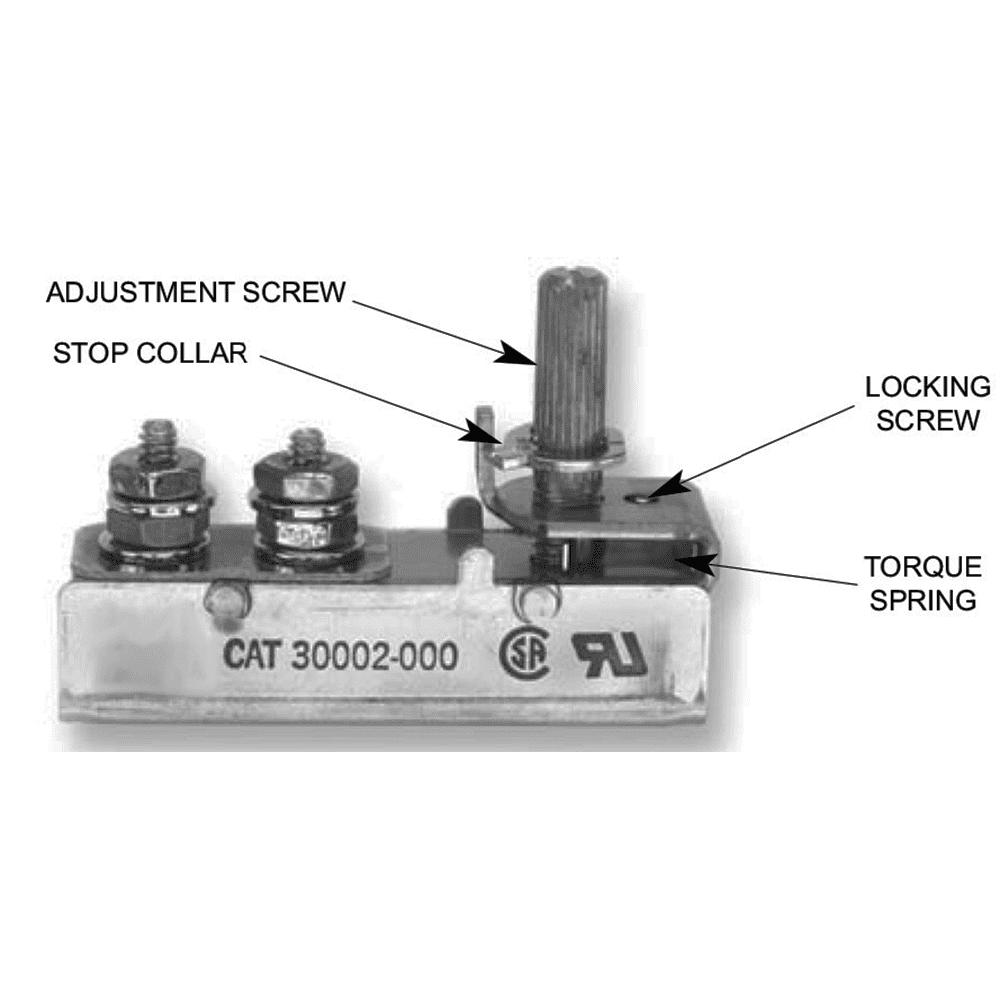

11-30000-000 | 11-30000-048 | 11-30002-000 | 30000-0 | 30002-0
