$289.30 – $822.45

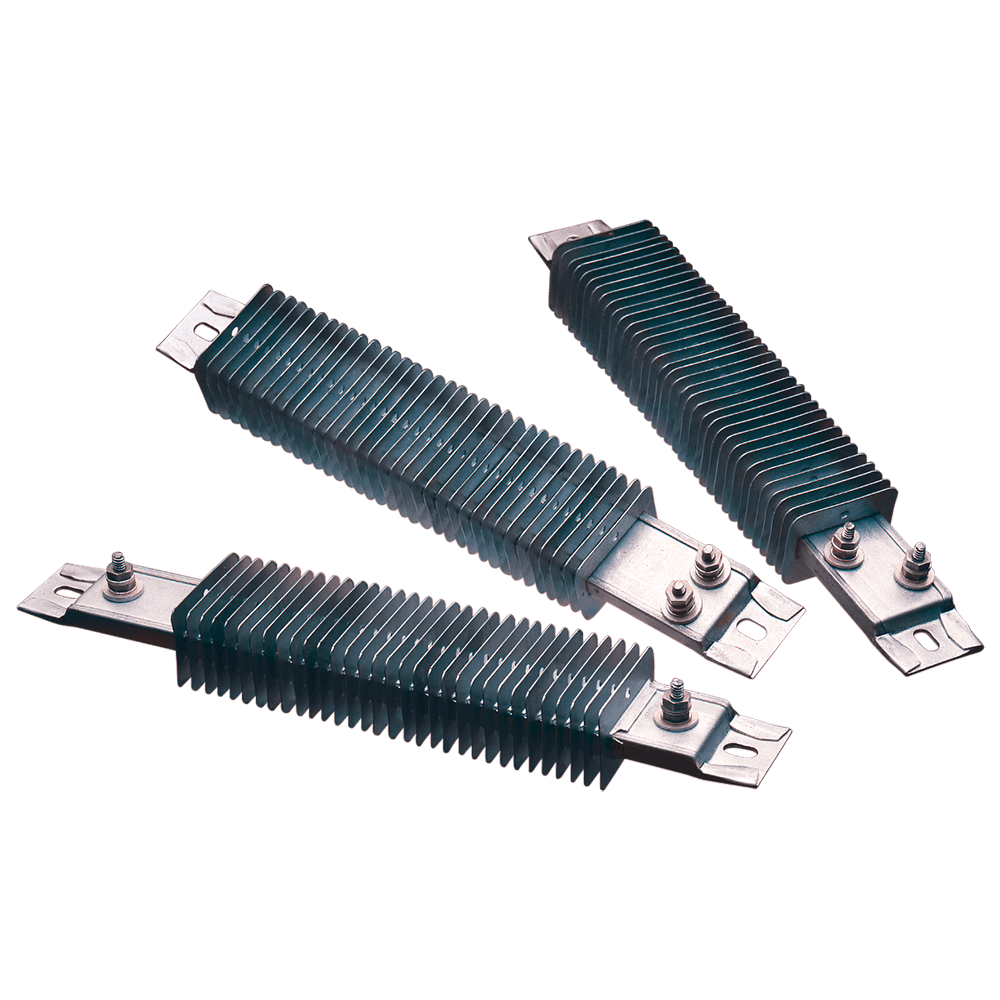

Widely popular in air heating applications, Watlow’s 375 Finned Strip Heater uses two inch wide aluminized steel fins. The fins are attached in a way that maximizes surface contact so that heat is displaced and transferred into the air faster. Like its 375 strip counterpart, the 375 finned strip heater is constructed of highly-compacted MgO-based insulation, which conducts heat efficiently from the nickel-chromium element wire to the sheath.

Watlow-375-Finned-Strip-spec

Current lead time is 4-6 weeks, FOB: St. Louis, MO.

SKU: N/A Categories: ,

All Variations

Part No.DescriptionPriceQuantityAdd to Cart
SGA1J17RW1Finned Strip Heater$289.30
SGA1J17RW2Finned Strip Heater$298.20
SGA1J17RW3Finned Strip Heater$298.20
SGA1J17RW4Finned Strip Heater$289.30
SGA1J17RW5Finned Strip Heater$289.30
SGA1J17RW6Finned Strip Heater$289.30
SGA1J17RW7Finned Strip Heater$289.30
SGA1J17RW8Finned Strip Heater$289.30
SGA1J17RW9Finned Strip Heater$289.30
SGA1J17RW10Finned Strip Heater$289.30
SGA1J19JW2Finned Strip Heater$311.30
SGA1J19JW3Finned Strip Heater$336.25
SGA1J19JW4Finned Strip Heater$311.30
SGA1J19JW5Finned Strip Heater$311.30
SGA1J19JW6Finned Strip Heater$311.30
SGA1J21AW3Finned Strip Heater$360.50
SGA1J21AW4Finned Strip Heater$329.05
SGA1J21AW5Finned Strip Heater$329.05
SGA1J21AW6Finned Strip Heater$329.05
SGA1J23NW3Finned Strip Heater$382.70
SGA1J23NW5Finned Strip Heater$359.15
SGA1J23NW6Finned Strip Heater$382.70
SGA1J23NW7Finned Strip Heater$382.70
SGA1J23NW8Finned Strip Heater$382.70
SGA1J25JW2Finned Strip Heater$411.05
SGA1J25JW3Finned Strip Heater$423.60
SGA1J25JW4Finned Strip Heater$441.25
SGA1J25JW5Finned Strip Heater$423.60
SGA1J25JW6Finned Strip Heater$423.60
SGA1J26NW2Finned Strip Heater$430.90
SGA1J26NW3Finned Strip Heater$430.90
SGA1J30JW1Finned Strip Heater$525.85
SGA1J30JW2Finned Strip Heater$493.75
SGA1J33JW1Finned Strip Heater$543.85
SGA1J35RW1Finned Strip Heater$610.55
SGA1J35RW2Finned Strip Heater$599.25
SGA1J35RW3Finned Strip Heater$581.70
SGA1J38JW2Finned Strip Heater$615.70
SGA1J38JW3Finned Strip Heater$625.00
SGA1J42JW1Finned Strip Heater$697.05
SGA1J47RW2Finned Strip Heater$822.45

SPECIFICATIONS:

Code No. Width (in.) Overall
Length (in.)		 Terminals Volts Watts Watt
Density
SGA1J17RW1 1-1/2 17-7/8 Offset 120 350 8
SGA1J17RW2 1-1/2 17-7/8 Offset 240 350 8
SGA1J17RW3 1-1/2 17-7/8 Offset 120 375 9
SGA1J17RW4 1-1/2 17-7/8 Offset 240 375 9
SGA1J17RW5 1-1/2 17-7/8 Offset 120 500 12
SGA1J17RW6 1-1/2 17-7/8 Offset 240 500 12
SGA1J17RW7 1-1/2 17-7/8 Offset 120 750 18
SGA1J17RW8 1-1/2 17-7/8 Offset 240 750 18
SGA1J17RW9 1-1/2 17-7/8 Offset 120 1000 24
SGA1J17RW10 1-1/2 17-7/8 Offset 240 1000 24
SGA1J19JW2 1-1/2 19-1/2 Offset 240 350 6
SGA1J19JW3 1-1/2 19-1/2 Offset 120 500 9
SGA1J19JW4 1-1/2 19-1/2 Offset 240 500 9
SGA1J19JW5 1-1/2 19-1/2 Offset 240 750 13
SGA1J19JW6 1-1/2 19-1/2 Offset 240 1000 17
SGA1J21AW3 1-1/2 21 Offset 120 500 8
SGA1J21AW4 1-1/2 21 Offset 240 500 8
SGA1J21AW5 1-1/2 21 Offset 120 750 12
SGA1J21AW6 1-1/2 21 Offset 240 750 12
SGA1J23NW3 1-1/2 23-3/4 Offset 240 500 7
SGA1J23NW5 1-1/2 23-3/4 Offset 240 750 10
SGA1J23NW6 1-1/2 23-3/4 Offset 120 1000 14
SGA1J23NW7 1-1/2 23-3/4 Offset 240 1000 14
SGA1J23NW8 1-1/2 23-3/4 Offset 240 1500 20
SGA1J25JW2 1-1/2 25-1/2 Offset 120 500 6
SGA1J25JW3 1-1/2 25-1/2 Offset 240 500 6
SGA1J25JW4 1-1/2 25-1/2 Offset 120 750 9
SGA1J25JW5 1-1/2 25-1/2 Offset 240 750 9
SGA1J25JW6 1-1/2 25-1/2 Offset 240 1000 12
SGA1J26NW2 1-1/2 26-3/4 Offset 240 700 8
SGA1J26NW3 1-1/2 26-3/4 Offset 240 1000 12
SGA1J30JW1 1-1/2 30-1/2 Offset 120 750 8
SGA1J30JW2 1-1/2 30-1/2 Offset 240 750 8
SGA1J33JW1 1-1/2 33-1/2 Offset 240 750 7
SGA1J35RW1 1-1/2 35-7/8 Offset 120 1000 8
SGA1J35RW2 1-1/2 35-7/8 Offset 240 1000 8
SGA1J35RW3 1-1/2 35-7/8 Offset 240 1500 13
SGA1J38JW2 1-1/2 38-1/2 Offset 120 1000 8
SGA1J38JW3 1-1/2 38-1/2 Offset 240 1500 11
SGA1J42JW1 1-1/2 42-1/2 Offset 240 1500 10
SGA1J47RW2 1-1/2 47-7/8 Offset 240 2250 16



Weight N/A
Part No.

SGA1J17RW1, SGA1J17RW2, SGA1J17RW3, SGA1J17RW4, SGA1J17RW5, SGA1J17RW6, SGA1J17RW7, SGA1J17RW8, SGA1J17RW9, SGA1J17RW10, SGA1J19JW2, SGA1J19JW3, SGA1J19JW4, SGA1J19JW5, SGA1J19JW6, SGA1J21AW3, SGA1J21AW4, SGA1J21AW5, SGA1J21AW6, SGA1J23NW3, SGA1J23NW5, SGA1J23NW6, SGA1J23NW7, SGA1J23NW8, SGA1J25JW2, SGA1J25JW3, SGA1J25JW4, SGA1J25JW5, SGA1J25JW6, SGA1J26NW2, SGA1J26NW3, SGA1J30JW1, SGA1J30JW2, SGA1J33JW1, SGA1J35RW1, SGA1J35RW2, SGA1J35RW3, SGA1J38JW2, SGA1J38JW3, SGA1J42JW1, SGA1J47RW2
