$113.10 – $133.35

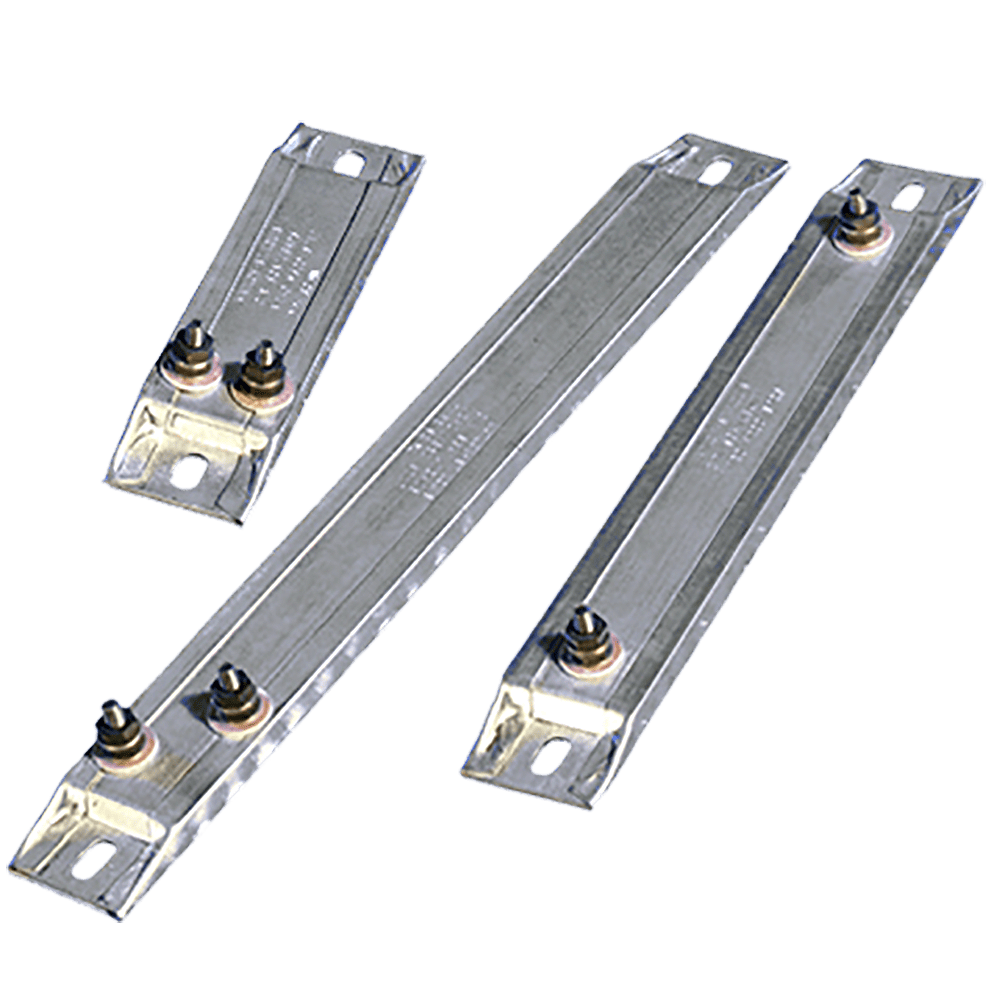

Aptly named for its 0.375 inch thickness, the Watlow 375 Strip is a rugged heater capable of both high temperatures (sheath temperature to 1100°F) and high watt densities (to 130 W/in2).

Its ruggedness comes from the design and use of choice materials. Watlow begins construction by accurately placing a coiled, nickel-chrome element wire in the center of the heater. The element wire is then embedded in MgO-based insulation. Then it is compacted into a solid mass that results in excellent heat conductivity and high dielectric strength. Finally, the heater is enclosed in aluminized steel sheathing.

Watlow-375-Strip-spec

Current lead time is 2-4 weeks, FOB: St. Louis, MO.

SKU: N/A Categories: ,

All Variations

Part No.DescriptionPriceQuantityAdd to Cart
SGA1J5JP1375 Strip Heater$113.10
SGA1J5JP2375 Strip Heater$113.10
SGA1J6AP2375 Strip Heater$113.10
SGA1J6AP3375 Strip Heater$113.10
SGA1J6AP4375 Strip Heater$113.10
SGA1J6AP5375 Strip Heater$113.10
SGA1J7JO1375 Strip Heater$118.35
SGA1J7JO2375 Strip Heater$118.35
SGA1J7JO3375 Strip Heater$118.35
SGA1J8AO1375 Strip Heater$121.05
SGA1J8AO5375 Strip Heater$121.05
SGA1J8AO6375 Strip Heater$121.05
SGA1J8AO7375 Strip Heater$121.05
SGA1J8AO2375 Strip Heater$121.05
SGA1J8AO8375 Strip Heater$121.05
SGA1J8AO9375 Strip Heater$121.05
SGA1J8AO10375 Strip Heater$121.05
SGA1J8AO3375 Strip Heater$121.05
SGA1J8AO4375 Strip Heater$121.05
SGA1J8AT1375 Strip Heater$121.05
SGA1J8AT2375 Strip Heater$120.45
SGA1J9JT1375 Strip Heater$120.80
SGA1J10JO1375 Strip Heater$123.40
SGA1J10JO2375 Strip Heater$123.40
SGA1J10JO8375 Strip Heater$123.40
SGA1J10JO5375 Strip Heater$123.40
SGA1J10JO6375 Strip Heater$123.40
SGA1J10JO7375 Strip Heater$123.40
SGA1J12AO1375 Strip Heater$133.35
SGA1J12AO2375 Strip Heater$133.35
SGA1J12AO5375 Strip Heater$133.35
SGA1J12AO6375 Strip Heater$133.35
SGA1J12AO3375 Strip Heater$133.35
SGA1J12AO4375 Strip Heater$133.35
SGA1J12AT1375 Strip Heater$133.35
SGA1J12AT2375 Strip Heater$133.35
SGA1J12AT3375 Strip Heater$133.35

SPECIFICATIONS:

Code No. Width (in.) Overall
Length (in.)		 Terminals Volts Watts Watt
Density
SGA1J5JP1 1-1/2 5-1/2 Parallel 120 125 35
SGA1J5JP2 1-1/2 5-1/2 Parallel 120 250 70
SGA1J6AP2 1-1/2 6 Parallel 120 150 35
SGA1J6AP3 1-1/2 6 Parallel 240 150 35
SGA1J6AP4 1-1/2 6 Parallel 120 300 70
SGA1J6AP5 1-1/2 6 Parallel 240 300 70
SGA1J7JO1 1-1/2 7-1/2 Offset 120 150 29
SGA1J7JO2 1-1/2 7-1/2 Offset 240 150 29
SGA1J7JO3 1-1/2 7-1/2 Offset 240 200 38
SGA1J8AO1 1-1/2 8 Offset 120 150 25
SGA1J8AO5 1-1/2 8 Offset 240 150 25
SGA1J8AO6 1-1/2 8 Offset 120 175 29
SGA1J8AO7 1-1/2 8 Offset 240 175 29
SGA1J8AO2 1-1/2 8 Offset 120 250 42
SGA1J8AO8 1-1/2 8 Offset 240 250 42
SGA1J8AO9 1-1/2 8 Offset 120 400 67
SGA1J8AO10 1-1/2 8 Offset 240 400 67
SGA1J8AO3 1-1/2 8 Offset 120 500 83
SGA1J8AO4 1-1/2 8 Offset 240 500 83
SGA1J8AT1 1-1/2 8 1-on-1 120 150 24
SGA1J8AT2 1-1/2 8 1-on-1 240 150 24
SGA1J9JT1 1-1/2 9-1/2 1-on-1 120 200 23
SGA1J10JO1 1-1/2 10-1/2 Offset 120 250 26
SGA1J10JO2 1-1/2 10-1/2 Offset 240 250 26
SGA1J10JO8 1-1/2 10-1/2 Offset 120 350 36
SGA1J10JO5 1-1/2 10-1/2 Offset 240 350 36
SGA1J10JO6 1-1/2 10-1/2 Offset 120 400 41
SGA1J10JO7 1-1/2 10-1/2 Offset 240 400 41
SGA1J12AO1 1-1/2 12 Offset 120 250 21
SGA1J12AO2 1-1/2 12 Offset 240 250 21
SGA1J12AO5 1-1/2 12 Offset 120 350 29
SGA1J12AO6 1-1/2 12 Offset 240 350 29
SGA1J12AO3 1-1/2 12 Offset 120 500 42
SGA1J12AO4 1-1/2 12 Offset 240 500 42
SGA1J12AT1 1-1/2 12 1-on-1 120 250 20
SGA1J12AT2 1-1/2 12 1-on-1 240 250 20
SGA1J12AT3 1-1/2 12 1-on-1 240 500 40
Weight N/A
Part No.

SGA1J5JP1, SGA1J5JP2, SGA1J6AP2, SGA1J6AP3, SGA1J6AP4, SGA1J6AP5, SGA1J7JO1, SGA1J7JO2, SGA1J7JO3, SGA1J8AO1, SGA1J8AO5, SGA1J8AO6, SGA1J8AO7, SGA1J8AO2, SGA1J8AO8, SGA1J8AO9, SGA1J8AO10, SGA1J8AO3, SGA1J8AO4, SGA1J8AT1, SGA1J8AT2, SGA1J9JT1, SGA1J10JO1, SGA1J10JO2, SGA1J10JO8, SGA1J10JO5, SGA1J10JO6, SGA1J10JO7, SGA1J12AO1, SGA1J12AO2, SGA1J12AO5, SGA1J12AO6, SGA1J12AO3, SGA1J12AO4, SGA1J12AT1, SGA1J12AT2, SGA1J12AT3
