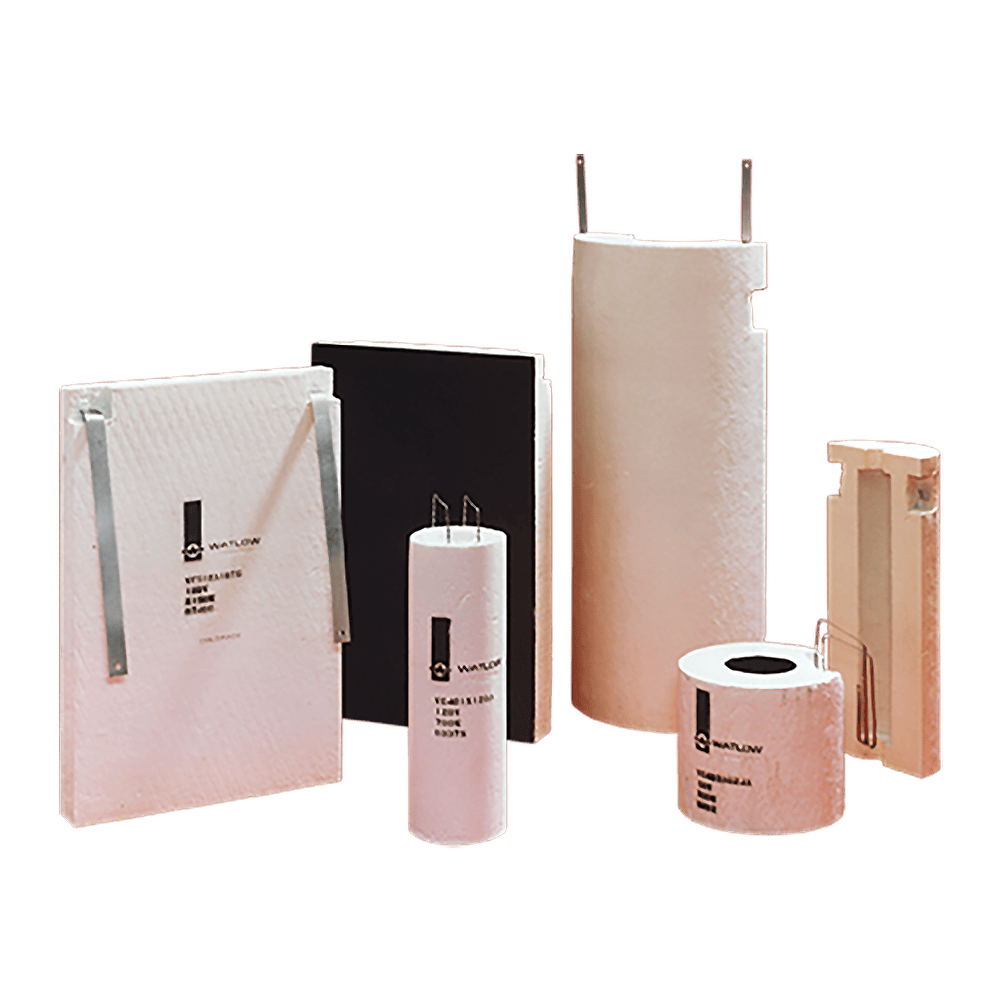

Watlow Ceramic Fiber Heaters

$344.33 – $2,496.62

Watlow Ceramic Fiber Heater – Flat Units

Heated Insulation – Operating Temperatures Up to 2200ºF. The Watlow Ceramic Fiber Heater product line offers some of the highest temperature heating elements in the Watlow family of heaters. Ceramic fiber heaters are made by integrating an iron-chrome-aluminum (ICA) heating element and ceramic fiber insulation for a new concept in application problem solving… “heated insulation!” Heating units constructed of ceramic fiber insulation isolate the heating chamber from the outside. Ceramic fiber heaters are extremely low mass, high insulation value units with self-supported heating elements. Many applications can benefit from the convenience of the heating element and insulation combined into one package. Ceramic fiber is an insulation made of an alumina-silica composition, held together by an inorganic binder. It’s commonly used as a refractory material. Its lightweight, low-density properties make it ideally suited for high temperature applications requiring low thermal mass.

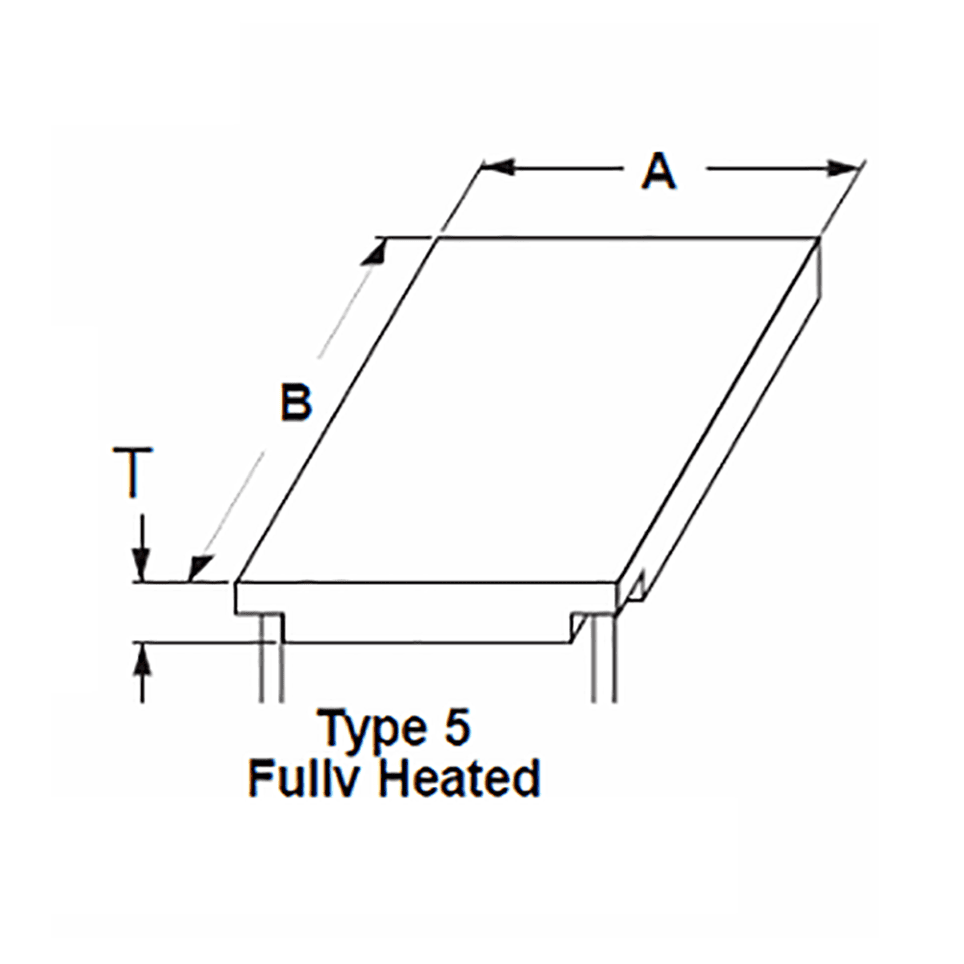

THIS PAGES IS FOR SERIES VF FLAT UNITS – FULLY HEATED TYPE 5

Need full circle, full cylinder ceramic fiber heater? See the Watlow VC Series Ceramic Fiber Heater

Need half-circle, semi-cylinder ceramic fiber heaters? See the Watlow VS Series Ceramic Fiber Heater

Download Watlow-CFH-spec sheet

Current lead time is 6 Weeks, FOB: Columbia, MO.

SKU: N/A Categories: ,

All Variations

Part No.Width (in)Length (in)VoltsWattsDescriptionPriceQuantityAdd to Cart
VF504A06S-0001R4660275Ceramic Fiber Heater$344.33
VF504A12S-0001R41260550Ceramic Fiber Heater$471.48
VF504A18S-0001R418120750Ceramic Fiber Heater$706.58
VF504A24S-0001R4241201100Ceramic Fiber Heater$820.40
VF506A06S-0001R6660375Ceramic Fiber Heater$400.57
VF506A12S-0001R612120750Ceramic Fiber Heater$532.41
VF506A18S-0001R6181201250Ceramic Fiber Heater$815.97
VF506A24S-0001R6242401500Ceramic Fiber Heater$834.66
VF506A30S-0001R6302402000Ceramic Fiber Heater$1,043.49
VF506A36S-0001R6362402500Ceramic Fiber Heater$1,251.91
VF508A12S-0001R8121201100Ceramic Fiber Heater$673.88
VF508A18S-0001R8182401500Ceramic Fiber Heater$795.31
VF508A24S-0001R8242402200Ceramic Fiber Heater$1,058.27
VF508A30S-0001R8302402500Ceramic Fiber Heater$1,345.54
VF508A36S-0001R8362403000Ceramic Fiber Heater$1,650.94
VF510A12S-0001R10122401250Ceramic Fiber Heater$708.43
VF510A18S-0001R10182401800Ceramic Fiber Heater$944.51
VF510A24S-0001R10242402500Ceramic Fiber Heater$1,393.02
VF510A30S-0001R10302403000Ceramic Fiber Heater$1,709.03
VF510A36S-0001R10362403600Ceramic Fiber Heater$1,967.71
VF512A12S-0001R12122401500Ceramic Fiber Heater$800.77
VF512A18S-0001R12182402200Ceramic Fiber Heater$1,150.25
VF512A24S-0001R12242403000Ceramic Fiber Heater$1,486.29
VF512A30S-0001R12302403600Ceramic Fiber Heater$1,764.91
VF512A36S-0001R12362404400Ceramic Fiber Heater$1,995.52
VF514A12S-0001R14122401750Ceramic Fiber Heater$860.67
VF514A18S-0001R14182402550Ceramic Fiber Heater$1,247.85
VF514A24S-0001R14242403500Ceramic Fiber Heater$1,652.74
VF514A30S-0001R14302404300Ceramic Fiber Heater$1,967.35
VF514A36S-0001R1436240/2405200Ceramic Fiber Heater$2,248.75
VF516A12S-0001R16122402100Ceramic Fiber Heater$976.90
VF516A18S-0001R16182403000Ceramic Fiber Heater$1,470.58
VF516A24S-0001R16242404200Ceramic Fiber Heater$1,863.22
VF516A30S-0001R1630240/2405000Ceramic Fiber Heater$2,277.18
VF516A36S-0001R1636240/2406000Ceramic Fiber Heater$2,496.62

IF THE FLAT CERAMIC FIBER HEATER YOU NEED IS NOT LISTED PLEASE EMAIL US FOR ASSISTANCE SALES@WESTCOASTPLASTICS.COM

Watlow Ceramic Fiber Heater Features and Benefits

High temperature ICA resistance elements
• Bounds integrally into required position
• Allows five element configurations
Lightweight, low-density alumina-silica composition molded into shape
• Acts as an insulation to isolate the heating chamber from the outside
• Provides low shrinkage fiber and inorganic binder
• Ensures a firm, thermal shock resistant, self-supporting unit at all operating temperatures
Operating temperatures up to 2200°F (1204°C)
• Provides high temperature performance that cannot be achieved with many other heater types
Low mass ceramic fiber insulation of 10 to 15 lb/ft3 (160 to 240 kg/m3)
• Allows the heater to reach process temperature quickly
• Enables the energy to heat the load instead of wasting energy on itself
Works directly off common power line voltages
• Eliminates the need for expensive transformers or complex power control systems
• Enables compatibility with the full range of Watlow temperature controllers and power switching devices





VF504A06S-0001R | VF504A12S-0001R | VF504A18S-0001R | VF504A24S-0001R | VF506A06S-0001R | VF506A12S-0001R | VF506A18S-0001R | VF506A24S-0001R | VF506A30S-0001R | VF506A36S-0001R | VF508A12S-0001R | VF508A18S-0001R | VF508A24S-0001R | VF508A30S-0001R | VF508A36S-0001R | VF510A12S-0001R | VF510A18S-0001R | VF510A24S-0001R | VF510A30S-0001R | VF510A36S-0001R | VF512A12S-0001R | VF512A18S-0001R | VF512A24S-0001R | VF512A30S-0001R | VF512A36S-0001R | VF514A12S-0001R | VF514A18S-0001R | VF514A24S-0001R | VF514A30S-0001R | VF514A36S-0001R | VF516A12S-0001R | VF516A18S-0001R | VF516A24S-0001R | VF516A30S-0001R | VF516A36S-0001R
