Watlow Circulation Heaters provide a ready made means to install electric heating with a minimal amount of time and labor. This is accomplished by combining heating elements, vessel, insulation, terminal enclosure, mounting brackets and inlet and outlet connections into a complete assembly. Made from NPT screw plug or ANSI flange heater assemblies mated with a pressure vessel (tank), circulation heaters are designed to heat forced-circulation air, gases or liquids. Ideal for either in-line or side-arm operations, these assemblies direct fluids past FIREBAR® or WATROD heating elements, to deliver fast response and even heat distribution.

Watlow Circulation Heater Spec

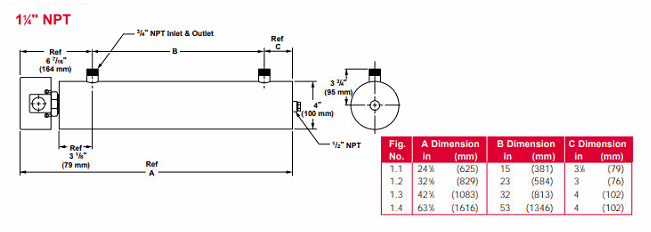

CODE PREFIX CBDNF – Steel Tank, 1-1/4 inch NPT Screw Plug, 23 15 & 8 WSI, 1-Alloy 800 Firebar Element.

Application 23 WSI: Lightweight Oils and Heat Transfer Oils
Application 15 WSI: Medium Weight Oils and Heat Transfer Oils
Application 8 WSI: Bunker C, Asphalt and #6 Fuel Oil

Current lead time is 7-10 Days, FOB: Hannibal, MO.

BUILD-A-PRODUCT – Use the pull-down menus to select the base heater, enclosure with process sensor and over-temp sensor options.

Base Circulation Heater

  • *

Enclosure with Process Thermostat

  • *

Over-Temp Thermocouple

  • *

Product total

Options total

Grand total

SKU: N/A Categories: , ,

IF THE WATLOW CIRCULATION HEATER YOU NEED IS NOT SHOWN, PLEASE EMAIL US FOR ASSISTANCE SALES@WESTCOASTPLASTICS.COM











CBDNF16G20 = 240V 3-ph 1.25kW 23WSI | CBDNF19G20 = 240V 3-ph 1.65kW 23WSI | CBDNF24L20 = 240V 3-ph 2.15kW 23WSI | CBDNF24L19 = 480V 3-ph 2.15kW 23WSI | CBDNF29R20 = 240V 3-ph 2.65kW 23WSI | CBDNF29R19 = 480V 3-ph 2.65kW 23WSI | CBDNF34R20 = 240V 3-ph 3.20kW 23WSI | CBDNF34R19 = 480V 3-ph 3.20kW 23WSI | CBDNF45G20 = 240V 3-ph 4.25kW 23WSI | CBDNF45G19 = 480V 3-ph 4.25kW 23WSI | CBDNF55R20 = 240V 3-ph 5.40kW 23WSI | CBDNF55R20 = 480V 3-ph 5.40kW 23WSI | CBDNF13A29 = 240V 3-ph 0.67kW 15WSI | CBDNF15J29 = 240V 3-ph 0.83kW 15WSI | CBDNF18A29 = 240V 3-ph 1.00kW 15WSI | CBDNF22J29 = 240V 3-ph 1.33kW 15WSI | CBDNF22J30 = 480V 3-ph 1.33kW 15WSI | CBDNF27J29 = 240V 3-ph 1.67kW 15WSI | CBDNF27J30 = 480V 3-ph 1.67kW 15WSI | CBDNF32J29 = 240V 3-ph 2.00kW 15WSI | CBDNF32J30 = 480V 3-ph 2.00kW 15WSI | CBDNF42A29 = 240V 3-ph 2.67kW 15WSI | CBDNF42A30 = 480V 3-ph 2.67kW 15WSI | CBDNF51J29 = 240V 3-ph 3.33kW 15WSI | CBDNF51J30 = 480V 3-ph 3.33kW 15WSI | CBDNF16G22 = 240V 3-ph 0.43kW 8WSI | CBDNF19G22 = 240V 3-ph 0.55kW 8WSI | CBDNF24L22 = 240V 3-ph 0.70kW 8WSI | CBDNF24L21 = 480V 3-ph 0.70kW 8WSI | CBDNF29R22 = 240V 3-ph 0.88kW 8WSI | CBDNF29R21 = 480V 3-ph 0.88kW 8WSI | CBDNF34R22 = 240V 3-ph 1.08kW 8WSI | CBDNF34R21 = 480V 3-ph 1.08kW 8WSI | CBDNF45G22 = 240V 3-ph 1.40kW 8WSI | CBDNF45G21 = 480V 3-ph 1.40kW 8WSI | CBDNF55R22 = 240V 3-ph 1.80kW 8WSI | CBDNF55R21 = 480V 3-ph 1.80kW 8WSI
