$404.00 – $765.00

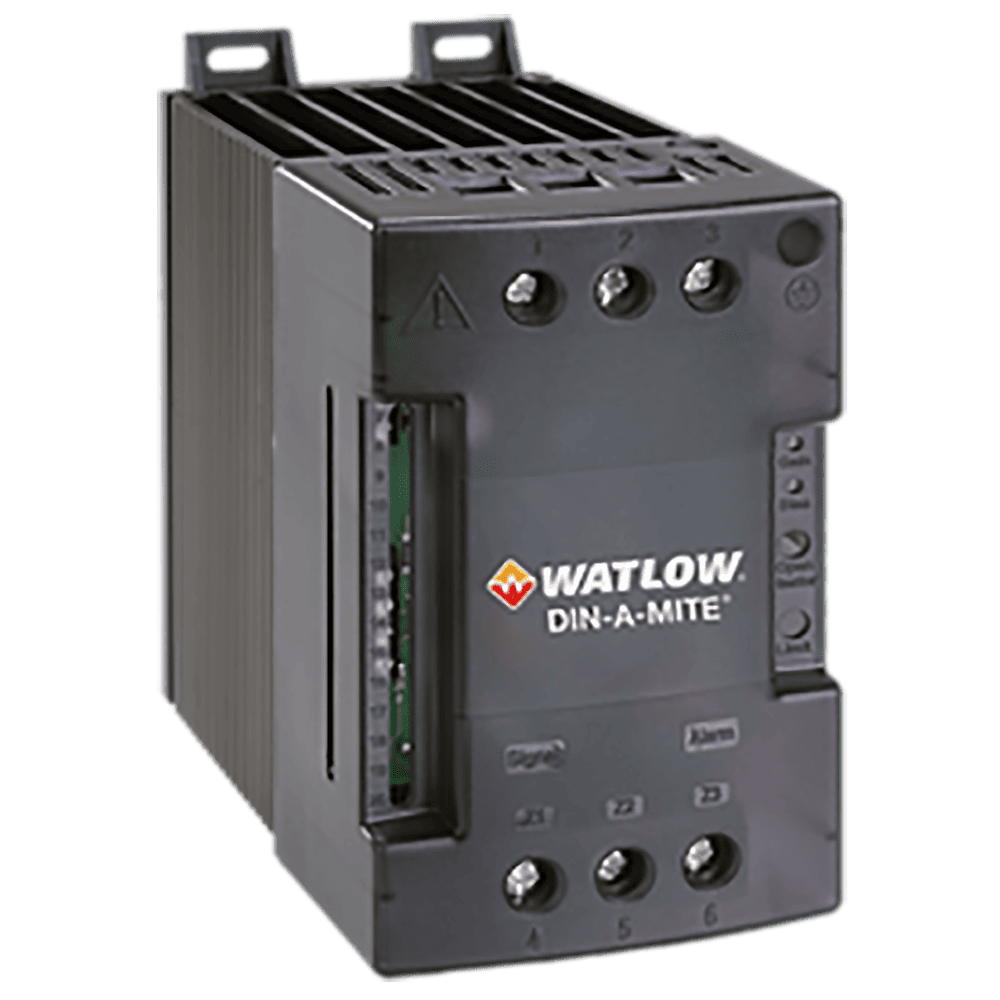

The DIN-A-MITE C silicon controlled rectifier (SCR) power controller provides a low cost, compact and versatile solid state option for controlling electric heat.
This controller is designed and manufactured with the quality features expected from Watlow. DIN-rail/panel mount and through-wall mount versions are available. DC10, DC11, DC20, DC21, DC30, DC31  Zero cross solid state power controller. 1-3 phases, 1-3 controlled legs. Natural convection and forced air cooling versions. Up to 75 amps.

Watlow-Din-A-Mite-C Brochure

Click here for SCR Fuses & Fuse Holders

IF THE DIN-A-MITE YOU NEED IS NOT SHOWN, PLEASE TRY OUR
Din-A-Mite C Build-A-Product or Din-A-Mite C- Enhanced Build-A-Product
OR EMAIL US FOR ASSISTANCE SALES@WESTCOASTPLASTICS.COM

Current lead time is 3-5 Days, FOB: Winona, MN.

SKU: N/A Categories: ,

All Variations

Part No.Line/Load VoltageInput SignalDescriptionPriceQuantityAdd to Cart
DC10-24C0-0000100 to 240V~(ac)4.5 to 32V (dc)Din-A-Mite Style C$404.00
DC10-24F0-0000100 to 240V~(ac)4 to 20mA (dc)Din-A-Mite Style C$434.00
DC10-60C0-0000277 to 600V~(ac)4.5 to 32V (dc)Din-A-Mite Style C$404.00
DC10-60F0-0000277 to 600V~(ac)4 to 20mA (dc)Din-A-Mite Style C$434.00
DC11-24C0-0000100 to 240V~(ac)4.5 to 32V (dc)Din-A-Mite Style C Fan Cooled$483.00
DC11-24F0-0000100 to 240V~(ac)4 to 20mA (dc)Din-A-Mite Style C Fan Cooled$513.00
DC11-60C0-0000277 to 600V~(ac)4.5 to 32V (dc)Din-A-Mite Style C Fan Cooled$483.00
DC11-60F0-0000277 to 600V~(ac)4 to 20mA (dc)Din-A-Mite Style C Fan Cooled$513.00
DC20-24C0-0000100 to 240V~(ac)4.5 to 32V (dc)Din-A-Mite Style C$527.00
DC20-24F0-0000100 to 240V~(ac)4 to 20mA (dc)Din-A-Mite Style C$557.00
DC20-60C0-0000277 to 600V~(ac)4.5 to 32V (dc)Din-A-Mite Style C$527.00
DC20-60F0-0000277 to 600V~(ac)4 to 20mA (dc)Din-A-Mite Style C$557.00
DC21-24C0-0000100 to 240V~(ac)4.5 to 32V (dc)Din-A-Mite Style C Fan Cooled$606.00
DC21-24F0-0000100 to 240V~(ac)4 to 20mA (dc)Din-A-Mite Style C Fan Cooled$636.00
DC21-60C0-0000277 to 600V~(ac)4.5 to 32V (dc)Din-A-Mite Style C Fan Cooled$606.00
DC21-60F0-0000277 to 600V~(ac)4 to 20mA (dc)Din-A-Mite Style C Fan Cooled$636.00
DC30-24C0-0000100 to 240V~(ac)4.5 to 32V (dc)Din-A-Mite Style C$656.00
DC30-24F0-0000100 to 240V~(ac)4 to 20mA (dc)Din-A-Mite Style C$686.00
DC30-60C0-0000277 to 600V~(ac)4.5 to 32V (dc)Din-A-Mite Style C$656.00
DC30-60F0-0000277 to 600V~(ac)4 to 20mA (dc)Din-A-Mite Style C$686.00
DC31-24C0-0000100 to 240V~(ac)4.5 to 32V (dc)Din-A-Mite Style C Fan Cooled$735.00
DC31-24F0-0000100 to 240V~(ac)4 to 20mA (dc)Din-A-Mite Style C Fan Cooled$765.00
DC31-60C0-0000277 to 600V~(ac)4.5 to 32V (dc)Din-A-Mite Style C Fan Cooled$735.00
DC31-60F0-0000277 to 600V~(ac)4 to 20mA (dc)Din-A-Mite Style C Fan Cooled$765.00

Din-A-Mite C features include single-phase, three-phase/two leg, and three-phase/three leg, 24-600VAC operation. Current switching capabilities range from 30 to 80A depending on the model ordered.

Variable time-base, linear voltage and current process control or VAC/VDC input contactor versions are available. Single-phase, phase angle firing and current limiting are also available. All options are model number dependent and factory configurable. This power controller includes 200KA short circuit current rating (SCCR) tested up to 480VAC to minimize damage in the event of a short circuit when used with required fusing.





DC10-24C0-0000 | DC10-24F0-0000 | DC10-60C0-0000 | DC10-60F0-0000 | DC20-24C0-0000 | DC20-24F0-0000 | DC20-60C0-0000 | DC20-60F0-0000 | DC30-24C0-0000 | DC30-24F0-0000 | DC30-60C0-0000 | DC30-60F0-0000 | DC11-24C0-0000 | DC11-24F0-0000 | DC11-60C0-0000 | DC11-60F0-0000 | DC21-24C0-0000 | DC21-24F0-0000 | DC21-60C0-0000 | DC21-60F0-0000 | DC31-24C0-0000 | DC31-24F0-0000 | DC31-60C0-0000 | DC31-60F0-0000



Weight N/A
