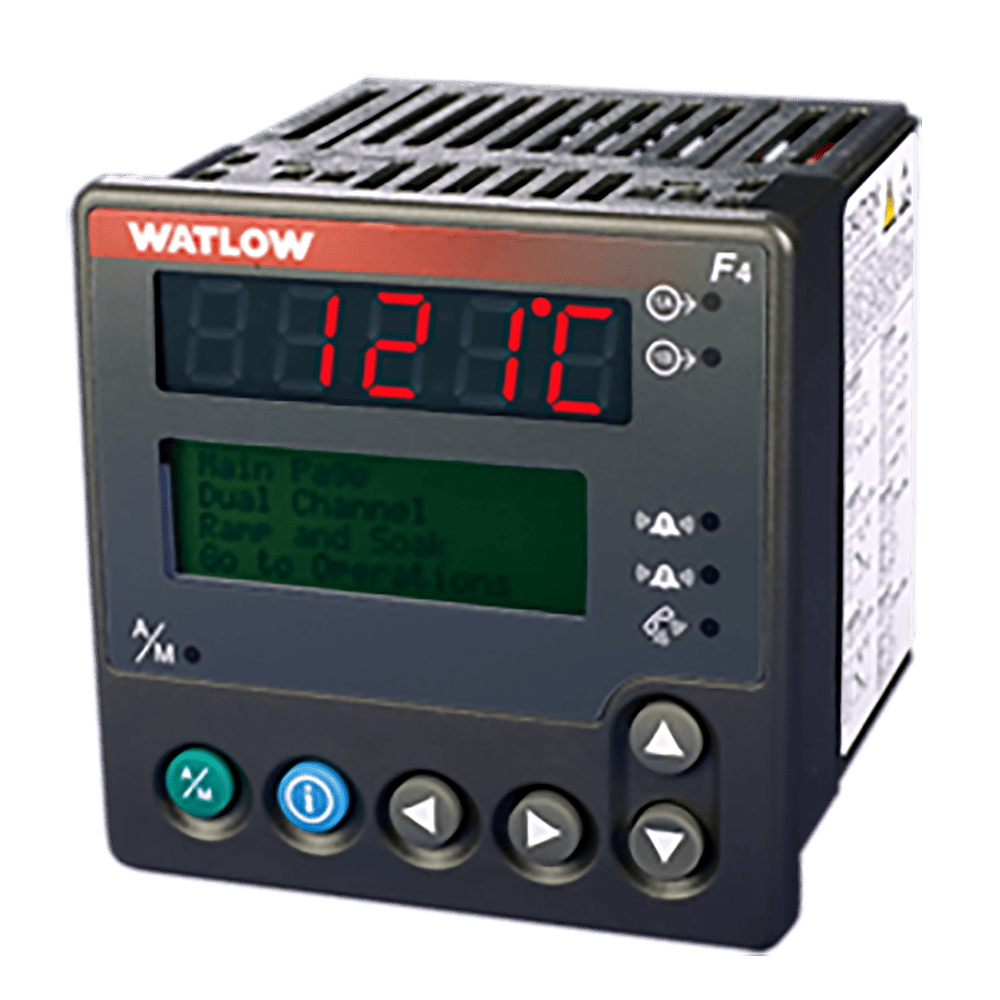

The Watlow Series F4P 1/4 DIN temperature process controllers offer the performance and features to meet a wide range of industrial processing needs. The F4 process controllers are ideally suited for semiconductor manufacturing equipment, plastic processing and packaging equipment, and industrial process control applications. This competitively priced controller features a four line, high definition LCD interface display along with an information key that makes set up and control operation significantly easier with less chance for error. A 16 bit microprocessor support all the accuracy and performance advantages that you have come to expect from a Watlow controller.The enhanced software option enables the Series F4P to support complex control applications such as cascade, ratio and differential control. The four digital inputs can be used to remotely modify the operation of the controller or enable the display of pre-defined operator messages. Serial communication and dual alarm relays are included in the base unit. The Series F4P is packaged with a NEMA 4X front face to withstand harsh environments and a four inch deep case with removable connectors for wiring convenience.
The Series F4P controller is manufactured by ISO 9001 registered Watlow Controls and is backed with a three-year warranty.
FEATURES & BENEFITS
- High definition four line LCD display
- Information Key
- Menu customization
- Software guided set up
- High performance 16 bit microprocessor
- 20Hz update rates
- ±0.1% calibration accuracy
- Cascade control
- Multiple PID sets
- Full features alarms
- Universal analog inputs
- Digital inputs
- Retransmit outputs
- Serial communications
- Field upgradable
- Three-year warranty
MODEL NUMBER GUIDE:
| F | 4 | P | H | – | __ | __ | A | __ | – | __ | __ | R | G |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 1-3. F4P =Series F4P – Single Channel 1/4 DIN Process Controller, 4 digital inputs, EIA232/485 Modbus comms, 2 alarms | |
| 4. Power Supply (low voltage option no longer available) | |
| H = 100-240V~(ac/dc) | |
| 5. Output 1A (choose C, K or F) | |
| C = Switched dc output / open collector | |
| E = Mechanical relay, 2 amp @ 250V | |
| K = Solid state relay, Form A, 0.5A, without RC suppression | |
| F = Universal Process, range selectable:0-20mA, 4-20mA, 0-5V-(dc), 1-5V-(dc), 0-10V-(dc) | |
| 6. Output 1B (choose A, C, E, K or F) | |
| A = None | |
| C = Switched dc output / open collector | |
| E = Mechanical relay, 2 amp @ 250V | |
| K = Solid state relay, Form A, 0.5A, without RC suppression | |
| F = Universal Process, range selectable: 0-20mA, 4-20mA, 0-5V-(dc), 1-5V-(dc), 0-10V-(dc) | |
| 7. Future Options | |
| A = None | |
| 8. Control Operation(choose A or B) | |
| A = Standard control operation | |
| B = Enhanced control operation: dual universal inputs, cascade, ratio, differential slidewire, remote set point, alternate input | |
| 9. Auxiliary Retransmit Module (choose 0, 1 or 2) | |
| 0 = None | |
| 1 = Single retransmit output: 0-20mA, 4-20mA, 0-5V-(dc), 1-5V-(dc), 0-10V-(dc) | |
| 2 = Dual retransmit outputs: 0-20mA, 4-20mA, 0-5V-(dc), 1-5V-(dc), 0-10V-(dc) | |
| 10. Language Option (choose 1, 2, 3, 4, 5, 6, 7 or 8) | |
| 1 = English with 100Ω RTD | |
| 2 = German with 100Ω RTD | |
| 3 = French with 100Ω RTD | |
| 4 = Spanish with 100Ω RTD | |
| 5 = English with 500 and 1kΩ RTD | |
| 6 = German with 500 and 1kΩ RTD | |
| 7 = French with 500 and 1kΩ RTD | |
| 8 = Spanish with 500 and 1kΩ RTD | |
| 11-12. Display Colors | |
| RG = Red Upper Display & Green Lower Display | |
F4PH-CAAA-01RG | F4PH-CAAB-01RG | F4PH-CCAA-01RG | F4PH-CCAB-01RG | F4PH-CEAA-01RG | F4PH-CEAB-01RG | F4PH-CKAA-01RG | F4PH-CKAB-01RG | F4PH-CFAA-01RG | F4PH-CFAB-01RG | F4PH-EAAA-01RG | F4PH-EAAB-01RG | F4PH-EEAA-01RG | F4PH-EEAB-01RG | F4PH-EKAA-01RG | F4PH-EKAB-01RG | F4PH-EFAA-01RG | F4PH-EFAB-01RG | F4PH-FAAA-01RG | F4PH-FAAB-01RG | F4PH-FCAA-01RG | F4PH-FCAB-01RG | F4PH-FEAA-01RG | F4PH-FEAB-01RG | F4PH-FFAA-01RG | F4PH-FFAB-01RG | F4PH-FKAA-01RG | F4PH-FKAB-01RG | F4PH-KAAA-01RG | F4PH-KAAB-01RG | F4PH-KEAA-01RG | F4PH-KEAB-01RG | F4PH-KFAA-01RG | F4PH-KFAB-01RG | F4PH-KKAA-01RG | F4PH-KKAB-01RG
