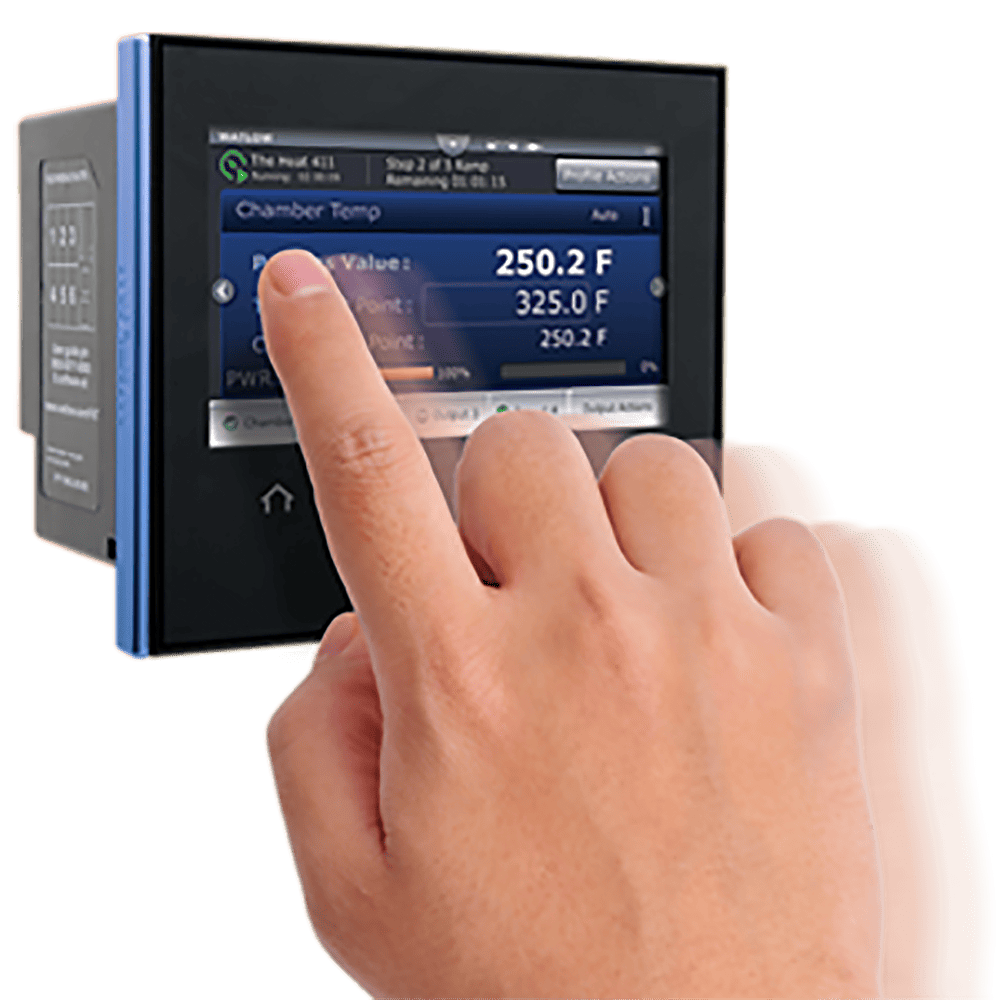

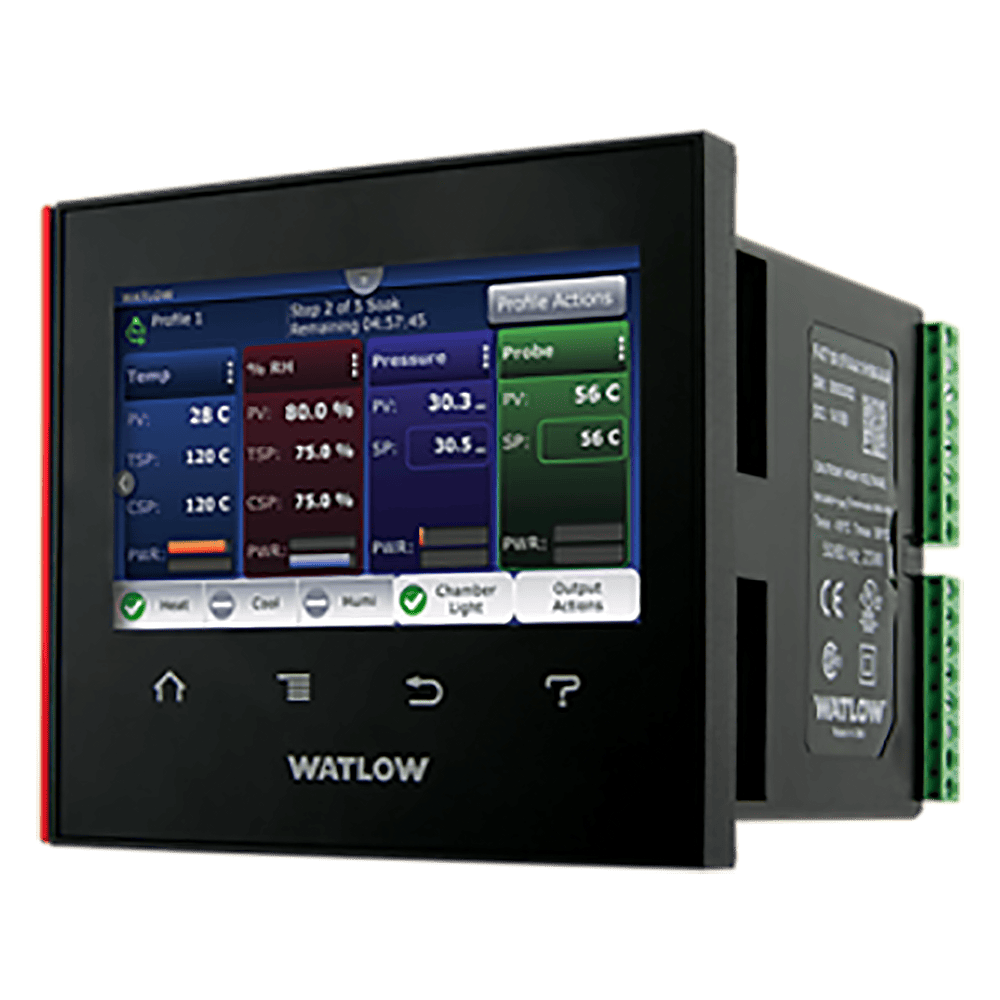

The Watlow F4T with INTUITION® Temperature Process Controller offers a wide range of field removable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet the scaling needs of a tremendous range of equipment and applications while providing exactly the hardware types required for compatibility. The F4T controller also features a 4.3 inch, color, graphical touch panel. Combining power, flexibility and functionality, this new controller offers unmatched versatility, and its best-in-class ease of use could very well make user manuals a thing of the past.Optional integrated controller functions that can be combined together or ordered in different quantities as desired include:
- PID Control Loops
- Over/under temperature limit control loops
- 10 or 15 ampere power output/heater driver options
- On-board data logging
- Current measurement input
- Sequencer start up and control function
- Programmable timer and counter functions
- Programmable math and logic options
- Multiple communication protocol options
- Mobile configuration with removable secure digital (SD) flash card
FEATURES AND BENEFITS:
4.3-inch, color touch panel with high-resolution, graphical user-interface
- Shortens learning curve and reduces operator errors
- Allows channels, profiles, alarms, inputs and outputs to be personalized with user defined names
Temperature PID, data logger, trend chart, over/under-temperature limit, power switching, math, logic, timers and counters combined into an integrated system
- Lowers ownership costs
- Eliminates the need for separate discrete components
- Reduces complexity
- Simplifies design, ordering and installation
- Saves money
Robust algorithms for temperature, cascade, altitude, humidity and compressor
- Improves process control
- Offers one to four channels of control
- Provides multiple PID sets
- Enables TRU-TUNE®+ adaptive control algorithm
- Offers 40 ramp and soak profiles with real-time clock and
- battery backup
COMPOSER® graphical configuration PC software
- Speeds up and simplifies commissioning
- Archives and documents controller setup
- Connects with controller easily via Ethernet
- Many communications options available including Ethernet
Modbus® TCP and SCPI and EIA-232/485 Modbus® RTU
- Offers two USB host ports and one device port
- Simplifies file transfers
- Connects easily
Modular design
- Adapts quickly to evolving requirements
- Offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
- Features scalable and modular firmware functions
- Delivers scalable input/output quantities from 1 to 36
Agency certifications include UL®, FM, CE, RoHS, W.E.E.E., NEMA 4X/IP65
- Ensures high quality and reliability
- Verifies performance in installations worldwide
SERIES F4S/F4D/F4P backward compatible
- Provides easy retrofit with minimum pain and disruption
- Ensures proper fit in existing SERIES F4 panel cutout
Off-the-shelf solution
- Provides cost-effective “make versus buy”
- Offers preconfigured touch-panel screens
- Assures quicker time to market
MODEL NUMBER GUIDE:
| F | 4 | T | 1 | __ | __ | __ | __ | __ | __ | __ | __ | A | A | A |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 1-3. Controller Style | |||
| F4T = Base includes: 4.3 inch color graphical touch panel, 2 USB host, USB configuration port, standard bus, high speed bus, wired Ethernet. SCPI protocol and backwards compatible Modbus for select key SERIES F4D/P/S parameters. | |||
| 4. Application Type (choose 1 or X) | |||
| 1 = Standard | |||
| X = Custom options, contact factory | |||
| 5. Data Logging (choose A, B, J, K, L or M) | |||
| A = None | |||
| B = Graphical Trend Chart | |||
| J = Data logging | |||
| K = Data logging with encrypted files | |||
| L = Data logging with graphical trend chart | |||
| M = Data logging with encrypted files and graphical trend chart | |||
| 6. Power Supply Connector & Voltage, Logo (choose 1, 2, 3, 4, 5, 6, 7 or 8) | |||
| Power Supply & Logo |
Power Supply Connector
|
||
| 1 = 100 to 240VAC with Logo |
Right angle (standard)
|
||
| 2 = 100 to 240VAC without Logo |
Right angle (standard)
|
||
| 3 = 100 to 240VAC with Logo |
Front screw
|
||
| 4 = 100 to 240VAC without Logo |
Front screw
|
||
| 5 = 24 to 28VAC or VDC with Logo |
Right angle (standard)
|
||
| 6 = 24 to 28VAC or VDC without Logo |
Right angle (standard)
|
||
| 7 = 24 to 28VAC or VDC with Logo |
Front screw
|
||
| 8 = 24 to 28VAC or VDC without Logo |
Front screw
|
||
| 7. Profiles & Function Blocks (choose A, B, C, D, E or F) | |||
| Profiles |
Function Blocks
|
||
| A = None |
Basic Set
|
||
| B = None |
Set 1
|
||
| C = None |
Set 2
|
||
| D = 40 Profiles, Battery Backup and Real-Time Clock |
Basic Set
|
||
| E =40 Profiles, Battery Backup and Real-Time Clock |
Set 1
|
||
| F = 40 Profiles, Battery Backup and Real-Time Clock |
Set 2
|
||
| NOTE: Refer to the F4T spec sheet “Number of Function Blocks by Ordering Option” in the specifications section for quantities and types of function blocks in each set. | |||
| 8-9. Communication Options | |||
| AA = Modbus TCP (Ethernet) | |||
| A3 = EtherNet/IP | |||
| 10-11. (choose 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J or XX) | |||
| Documentation DVD / QSG |
Decorated Brushed Aluminum Accent Bar
|
||
| 1A = Yes |
Gray
|
||
| 1B = Yes |
Blue
|
||
| 1C = Yes |
Red
|
||
| 1D = Yes |
None
|
||
| 1E = No |
Gray
|
||
| 1F = No |
Blue
|
||
| 1G = No |
Red
|
||
| 1H = No |
None
|
||
| 1J = Replacement connectors only – for the model number entered | |||
| XX =Contact factory, other custom-firmware, preset parameters, locked code, logo | |||
| 12.Control Algorithms (choose 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B or C) | |||
| Control Loop |
Cascade Loop
|
||
| 1 = 1 |
0
|
||
| 2 = 2 |
0
|
||
| 3 = 3 |
0
|
||
| 4 = 4 |
0
|
||
| 5 = 0 |
0
|
||
| 6 = 0 |
1
|
||
| 7 = 1 |
1
|
||
| 8 = 2 |
1
|
||
| 9 = 3 |
1
|
||
| A = 0 |
2
|
||
| B = 1 |
2
|
||
| C = 2 |
2
|
||
| NOTE: Each control loop algorithm requires 1 universal or thermistor input from a flex module. NOTE: Each cascade loop algorithm requires 2 universal or thermistor input from a flex module. |
|||
| 13-15. Populated Flex Modules | |||
| AAA = No Populated Flex Modules | |||
| XXX = Contact Factory – Populated Flex Modules | |||
| NOTE: If AAA is selected you will need to order Flex Modules (FM) next to account for input and output hardware. | |||
F4T1A1AAA1A1AAA | F4T1A1DAA1A1AAA | F4T1A1EAA1A1AAA | F4T1A1FAA1A1AAA | F4T1A1AAA1A2AAA | F4T1A1DAA1A2AAA | F4T1A1EAA1A2AAA | F4T1A1FAA1A2AAA | F4T1J1AAA1A1AAA | F4T1J1DAA1A1AAA | F4T1J1EAA1A1AAA | F4T1J1FAA1A1AAA | F4T1J1AAA1A2AAA | F4T1J1DAA1A2AAA | F4T1J1EAA1A2AAA | F4T1J1FAA1A2AAA | F4T1L1AAA1A1AAA | F4T1L1DAA1A1AAA | F4T1L1EAA1A1AAA | F4T1L1FAA1A1AAA | F4T1L1AAA1A2AAA | F4T1L1DAA1A2AAA | F4T1L1EAA1A2AAA | F4T1L1FAA1A2AAA
