FEATURES AND BENEFITS STANDARD
- Intuitive Menu Flow
- Reduces menu structure to a list of lists allowing thecontroller to be easily configured
- Offers easy to read characters and color coding making the display visible from many angles
- SMOOTH TOUCH keypad
- Eliminates contamination points on the front of the controller
- No mechanical components will wear out
- Creates a better seal on front panel
- Easy to clean
- Bluetooth® compatible with EZ-LINK™ mobile app
- Provides full descriptions of parameters and error codes
- Allows remote access capabilities without the use of cables or converters
- Provides the ability to configure the product and save parameter sets
- Integrated PID and limit controller
- Reduces wiring time and termination complexity compared with connecting discrete products
- Decreases required panel space
- Lowers installation costs
- Increases user and equipment safety for over/under temperature conditions
- High amperage power control output
- Drives 15 ampere resistive loads directly
- Reduces component count
- Decreases cost of ownership
- Current monitoring
- Detects heater current flow and provides alarm indication of a failed output device or heater load
- Drives output on open or shorted heater
- Serial communication capabilities
- Provides a wide range of protocol choices including
- Modbus® RTU, EtherNet/IP™, Modbus® TCP, PROFIBUS DP,
- DeviceNet™ and J1939 CAN bus
- Supports network connectivity to a PC or PLC
- Provides a wide range of protocol choices including
- Enhanced control options
- Easily handles complex process problems such as ratio, differential, square-root, motorized valve control without slidewire feedback, wet-bulb/dry-bulb, compressor control and peltier loads
- Countdown timer option
- Provides batch process control
- Supports set point change during countdown
- 10-point linearization curve
- Improves sensor accuracy
- EZ-LINK™ mobile application for iPhone® and Android™
- Expedites controller setup with intuitive navigation
- Simplifies setting parameters with plain text names and descriptions
- Connects quickly and easily via Bluetooth® wireless communications
- Configuration communications with software
- Includes Watlow standard bus communications used by COMPOSER® or EZ-ZONE configurator software
- Advanced PID control algorithm
- Offers TRU-TUNE®+ adaptive control to provide tighter control for demanding applications
- Provides auto-tune for fast, efficient start-up
- Built-in sensor compensation curves
- Saves cost of buying compensated sensors
- Includes Vaisala RH and altitude (pressure) curves
- Remote set point operation
- Supports convenient set point manipulation from a remote device such as a master control or PLC
- Profile capability
- Offers pre-programmed process control
- Allows ramp/soak programming with 40 total steps
- Retransmit output
- Supports industry needs for recording
- Factory Mutual (FM) approved over/under limit with auxiliary outputs
- Increases user and equipment safety for over/under temperature conditions
- Memory for saving and restoring parameter settings
- Decreases service calls and time down
- Agency approvals: UL® listed, CSA, CE, RoHS, W.E.E.E., FM, SEMI F47-0200, Class 1, Div. 2 rating on selected models
- Assures prompt product acceptance
- Reduces end product documentation costs
- Touch-safe package
- Increases safety for installer/operator
- Complies with IP2X requirements
- Programmable function key
- Enables simple, one-touch operation of user-defined, repetitive activities
- Programmable menu system
- Reduces setup time and increases operator efficiency
- Three-year warranty
- Provides product support and reliability
MODEL NUMBER GUIDE:
P | M | __ | __ | __ | __ | __ | – | __ | __ | __ | __ | __ | __ | __ | __ |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 11 | 12 | 13 | 14 |
1-2. Controller Style | ||

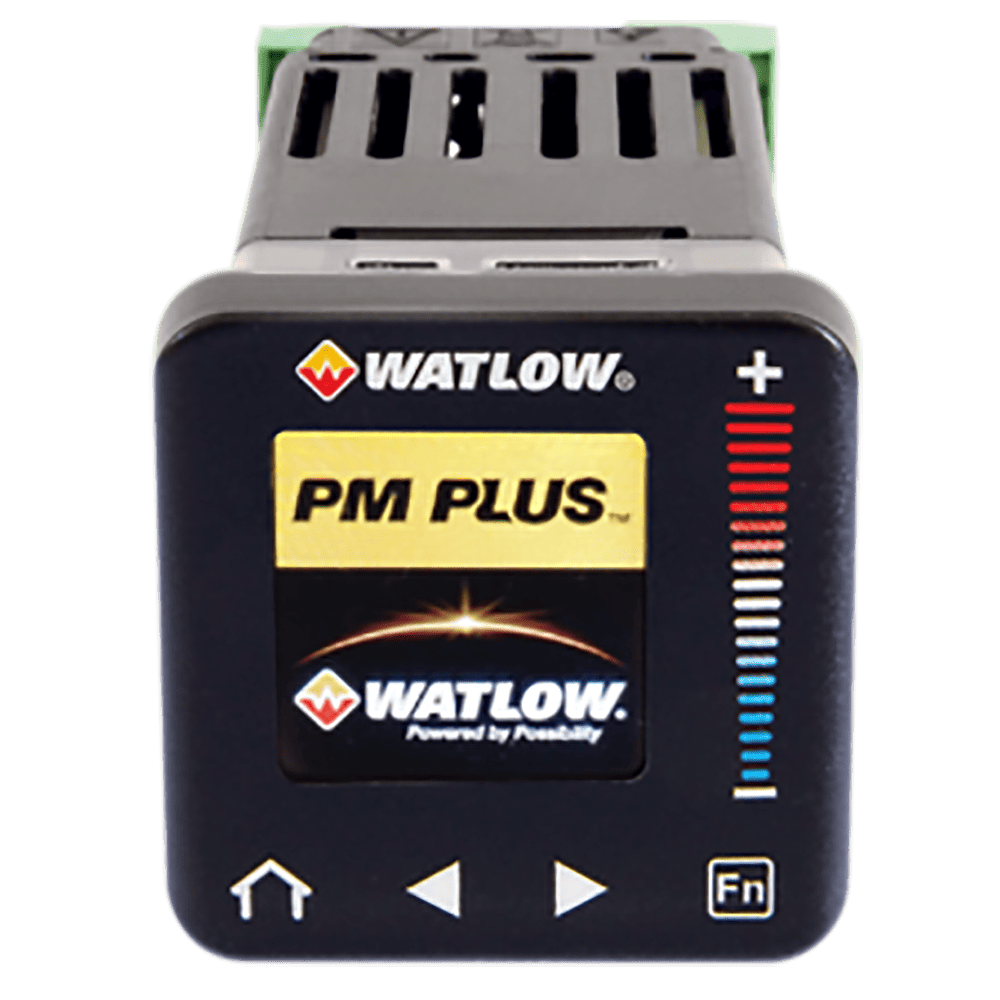

PM = EZ-Zone PM Plus Controller | ||
3. Package Size | ||
6 = 1/16 DIN | ||
8 = 1/8 DIN Vertical | ||
9 = 1/8 DIN Horizontal | ||
4. Primary Function | ||
C = PID Controller with Universal Input | ||
R = PID Controller with Universal Input and Profiling Ramp/Soak | ||
T = PID Controller with Universal Input and Countdown Timer | ||
J = PID Controller with Thermister Input | ||
N = PID Controller with Thermister Input and Profiling Ramp/Soak | ||
5. Power Supply, Digital I/O | ||
1 = 100 to 240V ~ (ac) | ||
2 = 100 to 240V ~ (ac) plus 2 digital I/O points | ||
3 = 20 to 28V ~ (ac) or 12 to 40V (dc) | ||
4 = 20 to 28V ~ (ac) or 12 to 40V (dc) plus 2 digital I/O points | ||
6-7. Output 1 and Output 2 Hardware Options (choose one combination of outputs) | ||
Output 1 | Output 2 | |
CA = Switched dc/open collector | None | |
CH = Switched dc/open collector | No-Arc 15A power control | |
CC = Switched dc/open collector | Switched dc/open collector | |
CJ = Switched dc/open collector | Mechanical relay 5A, Form A | |
CK = Switched dc/open collector | SSR Form A, 0.5A | |
EA = Mechanical relay 5A, Form C | None | |
EH = Mechanical relay 5A, Form C | No-Arc 15A power control | |
EC = Mechanical relay 5A, Form C | Switched dc/open collector | |
EJ = Mechanical relay 5A, Form C | Mechanical relay 5A, Form A | |
EK = Mechanical relay 5A, Form C | SSR Form A, 0.5A | |
FA = Universal Process | None | |
FC= Universal Process | Switched dc/open collector | |
FJ = Universal Process | Mechanical relay 5A, Form A | |
FK = Universal Process | SSR Form A, 0.5A | |
AK = None | SSR Form A, 0.5A | |
KH = SSR Form A, 0.5A | No-Arc 15A power control | |
KK = SSR Form A, 0.5A | SSR Form A, 0.5A | |
8. Additional Communication Options, Standard Bus Always Included | ||
A = None | ||
B = Bluetooth | ||
E = EIA 485 Modbus RTU and Bluetooth (Not available on 1/16 DIN or Express version) | ||
F = EIA 232/485 Modbus RTU and Bluetooth (not available on PM3 or Express Version) | ||
G = EtherNet/IP/Modbus TCP and Bluetooth (not available on PM3 or Express Version) | ||
H = DeviceNet and Bluetooth (not available on PM3 or Express Version) | ||
J = Profibus DP and Bluetooth (not available on PM3 or Express Version) | ||
K = SAE J1939 CAN bus and Bluetooth (only available on PM6 models) | ||
1 = EIA 485 Modbus RTU (Not available on 1/16 DIN or Express version) | ||
2 = EIA 232/485 Modbus RTU (not available on PM3 or Express Version) | ||
3 = EtherNet/IP/Modbus TCP (not available on PM3 or Express Version) | ||
5 = DeviceNet (not available on PM3 or Express Version) | ||
6 = Profibus DP (not available on PM3 or Express Version) | ||
7 = SAE J1939 CAN bus | ||
9. Auxiliary Control Functions | ||
A = None | ||
R = Auxiliary 2nd Input (universal input): PM6 = Remote set point input, backup sensor. | ||
P = Auxiliary 2nd Input (thermister input): PM6 = Remote set point input, backup sensor. | ||
T = Current transformer input (not valid with Output 3 and 4 selections FA, FC, FJ and FK) | ||
L = Integrated limit controller with universal input (only valid with Output 3 and 4 selections AJ, CJ and EJ) | ||
M = Integrated limit controller with thermister input (only valid with Output 3 and 4 selections AJ, CJ and EJ) | ||
10-11. Output 3 and Output 4 Hardware Options (choose one combination of outputs) | ||
Output 3 | Output 4 | |
AA = None | None | |
AJ = None | Mechanical relay 5A, Form A | |
AK = None | SSR Form A, 0.5A | |
CA = Switched dc/open collector | None | |
CC = Switched dc/open collector | Switched dc | |
CJ = Switched dc/open collector | Mechanical relay 5A, Form A | |
CK = Switched dc/open collector | SSR Form A, 0.5A | |
EA = Mechanical relay 5A, Form C | None | |
EC = Mechanical relay 5A, Form C | Switched dc | |
EJ = Mechanical relay 5A, Form C | Mechanical relay 5A, Form A | |
EK = Mechanical relay 5A, Form C | SSR Form A, 0.5A | |
FA = Universal Process | None | |
FC = Universal Process | Switched dc | |
FJ = Universal Process | Mechanical relay 5A, Form A | |
FK = Universal Process | SSR Form A, 0.5A | |
KK = SSR Form A, 0.5A | SSR Form A, 0.5A | |
12. Model Selection | ||
P = PM PLUS Standard (Isolated Input 1, Input 2 always isolated) | ||
V = PM PLUS Enhanced Firmware (Isolated Input 1, Input 2 always isolated) | ||
13-14. Additional Options | ||
WP = Standard Watlow logo face plate | ||
WN = No Logo and no Watlow name face plate | ||
AG = Conformal coating | ||
12 = Class 1 div. 2 (not available with mechanical relay output types E, H or J) |
