Watlow Screw Plug Heaters are primarily used for direct immersion in water, oils, viscous materials, solvents, process solutions and molten materials as well as air and gases. Additionally, round and flat surface tubular elements (Watrod & Firebar) can be used for surface heating. Watrod & Firebar heating elements may be purchased separately, or fabricated into process heating assemblies. Both elements and assemblies are available from stock. They can be configured with a variety of watt and volt ratings, terminations, sheath materials and mounting options to satisfy the most demanding applications. If the stock products do not meet your applications needs, the optimum heater can be custom engineered.

Watlow-Tubular-Process-spec

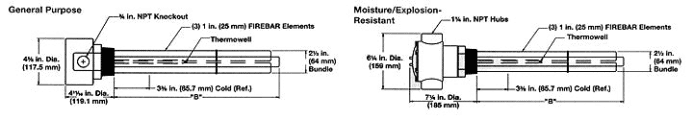

CODE PREFIX BLNF – 2-1/2 inch NPT 304SS Screw Plug, 30 WSI, 3-Alloy 800 Firebar Elements.

Application:  Lightweight Oils and Heat Transfer Oils

Current lead time is 7-10 Days, FOB: Hannibal, MO.

BUILD-A-PRODUCT – Use the pull-down menus to select the base heater, enclosure with process sensor and over-temp sensor options.

Base Screw Plug Immersion Heater

  • *

Enclosure with Process Thermostat

  • *

Over-Temp Thermocouple

  • *

Product total

Options total

Grand total

SKU: N/A Categories: , ,

IF THE WATLOW SCREW PLUG HEATER YOU NEED IS NOT SHOWN, PLEASE EMAIL US FOR ASSISTANCE SALES@WESTCOASTPLASTICS.COM







BLNF15C12 = 15-1/8″ 240V 3-ph 5.0kW | BLNF15C13 = 15-1/8″ 480V 3-ph 5.0kW | BLNF18C12 = 18-1/8″ 240V 3-ph 6.5kW | BLNF18C13 = 18-1/8″ 480V 3-ph 6.5kW | BLNF23C12 = 23-1/8″ 240V 3-ph 8.5kW | BLNF23C13 = 23-1/8″ 480V 3-ph 8.5kW | BLNF28L12 = 28-5/8″ 240V 3-ph 10.5kW | BLNF28L13 = 28-5/8″ 480V 3-ph 10.5kW | BLNF33L12 = 33-5/8″ 240V 3-ph 12.8kW | BLNF33L13 = 33-5/8″ 480V 3-ph 12.8kW | BLNF44C12 = 44-1/8″ 240V 3-ph 17.0kW | BLNF44C13 = 44-1/8″ 480V 3-ph 17.0kW | BLNF54L13 = 54-5/8″ 480V 3-ph 21.5kW
