Name: Watlow Solid State Relay
SKU: 8963
Availability: InStock

$34.00 – $185.00

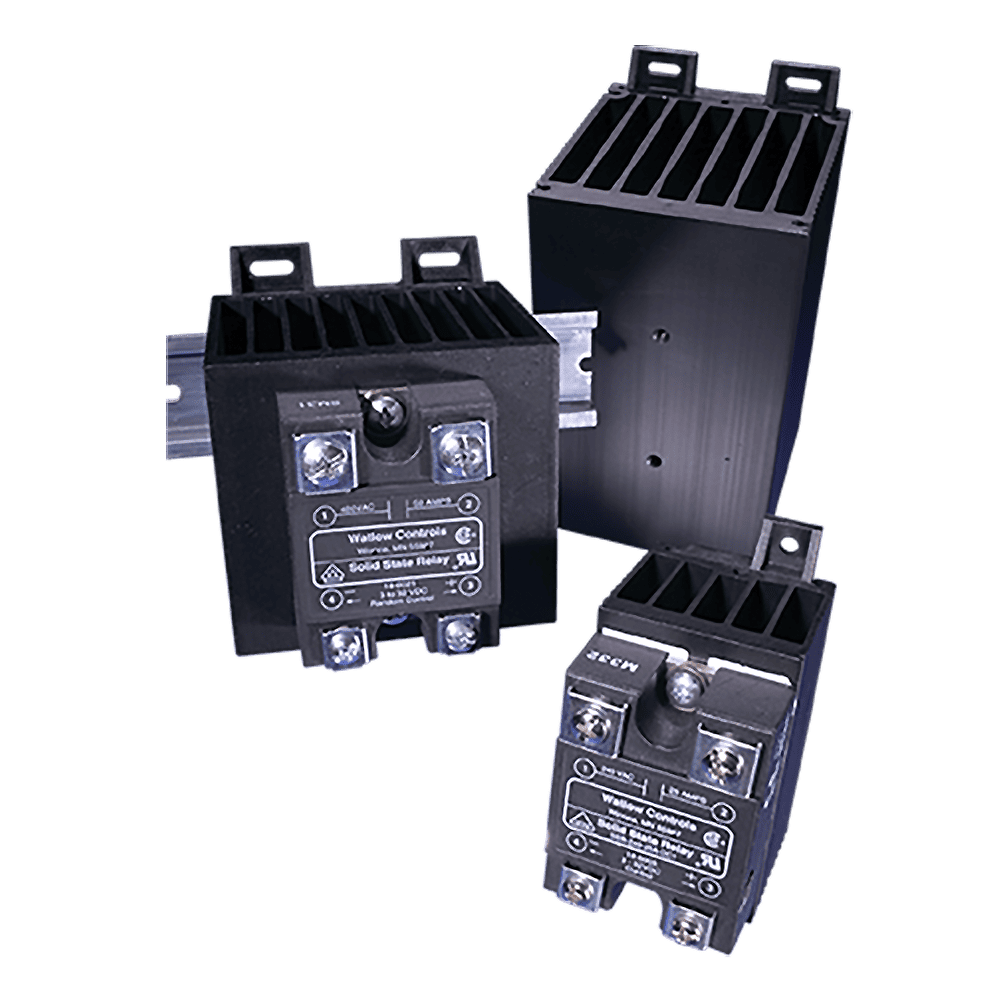

Watlow’s SSR Series of Solid State Selays and Heat Sinks offers many of the advantages of solid state power controls, yet at a lower cost. There are two different versions available: the first rated for applications up to 240VAC; and the second rated for applications up to 480VAC. Both products include back-to-back SCRs for a more rugged design than the traditional triac based solid state relay. The internal design allows it to handle high currents and the harsh electrical environments of heavy industry.

Watlow-SSR-Spec

Current lead time is 3-5 days, FOB: Winona, MN.

Part No.

Output Current (Amps)

Output Voltage

Input Control

Clear

- +

SKU: N/A Categories: Power Controls, Watlow

All Variations

Part No.	Output Current (Amps)	Output Voltage	Input Control	Description	Price	Quantity
SSR-240-10A-DC1	10	120/240VAC	3-32Vdc Zero Cross	Solid State Relay	$60.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-25A-DC1	25	120/240VAC	3-32Vdc Zero Cross	Solid State Relay	$67.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-40A-DC1	40	120/240VAC	3-32Vdc Zero Cross	Solid State Relay	$93.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-50A-DC1	50	120/240VAC	3-32Vdc Zero Cross	Solid State Relay	$96.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-75A-DC1	75	120/240VAC	3-32Vdc Zero Cross	Solid State Relay	$162.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-10A-AC1	10	120/240VAC	90-280VAC Zero Cross	Solid State Relay	$67.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-25A-AC1	25	120/240VAC	90-280VAC Zero Cross	Solid State Relay	$76.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-40A-AC1	40	120/240VAC	90-280VAC Zero Cross	Solid State Relay	$103.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-50A-AC1	50	120/240VAC	90-280VAC Zero Cross	Solid State Relay	$105.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-75A-AC1	75	120/240VAC	90-280VAC Zero Cross	Solid State Relay	$170.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-480-25A-DC1	25	480VAC	3-32Vdc Zero Cross	Solid State Relay	$114.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-480-50A-DC1	50	480VAC	3-32Vdc Zero Cross	Solid State Relay	$146.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-480-75A-DC1	75	480VAC	3-32Vdc Zero Cross	Solid State Relay	$177.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-480-25A-AC1	25	480VAC	90-280VAC Zero Cross	Solid State Relay	$126.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-480-50A-AC1	50	480VAC	90-280VAC Zero Cross	Solid State Relay	$157.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-480-75A-AC1	75	480VAC	90-280VAC Zero Cross	Solid State Relay	$185.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-10A-RND	10	240VAC	3-32Vdc Random	Solid State Relay	$66.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-50A-RND	50	240VAC	3-32Vdc Random	Solid State Relay	$138.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-240-75A-RND	75	240VAC	3-32Vdc Random	Solid State Relay	$184.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
SSR-100-20A-DC1	20	100Vdc	3-32Vdc	Solid State Relay	$117.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
Z100-0815-000A				Heat Sink - SSR Rating 18amp	$34.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
Z100-0815-000B				Heat Sink - SSR Rating 35 amp	$48.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
Z100-0815-000C				Heat Sink - SSR Rating 55 amp	$88.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
Z100-0815-12FC				Heat Sink Fan Cooled (120V fan) - SSR Rating 75 amp	$165.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+
Z100-0815-24FC				Heat Sink Fan Cooled (240V fan) - SSR Rating 75 amp	$165.00	Minus Quantity- Watlow Solid State Relay quantity Plus Quantity+

Showing 1 to 25 of 25 entries

Description
Additional information

Watlow Solid State Relays feature zero cross firing for minimal electrical noise. The fast cycle card on the SSR allows faster switching which gives tighter temperature control for better production and increased heater life. When the internal temperature of the heating element remains constant, it will last alot longer than a heater that experiences continual temperature fluctuations. The total size is just 1-3/4” x 2-1/4”.

Watlow can provide all the components necessary for trouble-free operation. This includes two standard convenience items: a thermal foil to ensure proper thermal transfer from the relay to the heat sink; and belville washers that ensure the relay is mounted with sufficient pressure for good heat transfer. Matched semiconductor fuses and heat sinks are available to complete the power switching package. Agency approvals include UL®, CSA and VDE.
